Description
The GS Basic pallet truck is the entry model of the Lifter hand pallet truck range, featuring reliability and solidness at competitive pricing.
Hydraulic Unit:
Resistant and reliable one piece cast iron pump, worked with numerical control machine, including:
- Maximum pressure valve: safety device that ensures the transpallet against overloads. When the pressure inside the hydraulic circuit exceeds the set calibration value according to the maximum nominal flow , the valve automatically locks the forks.
- ON/OFF lowering valve
Standard Configuration:

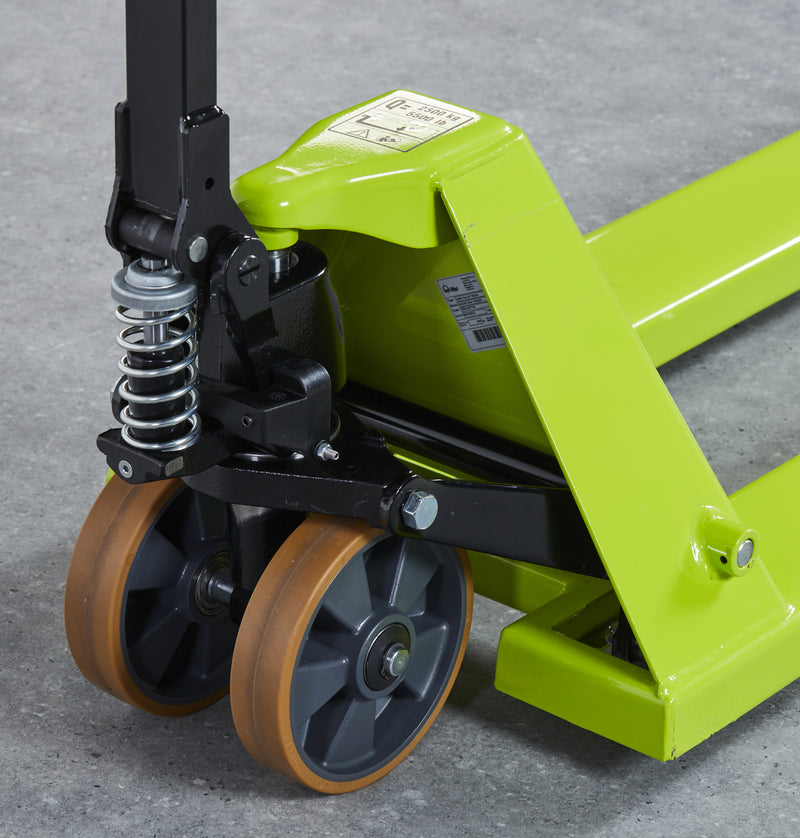

- Nylon - Poly 45 Steering Wheels

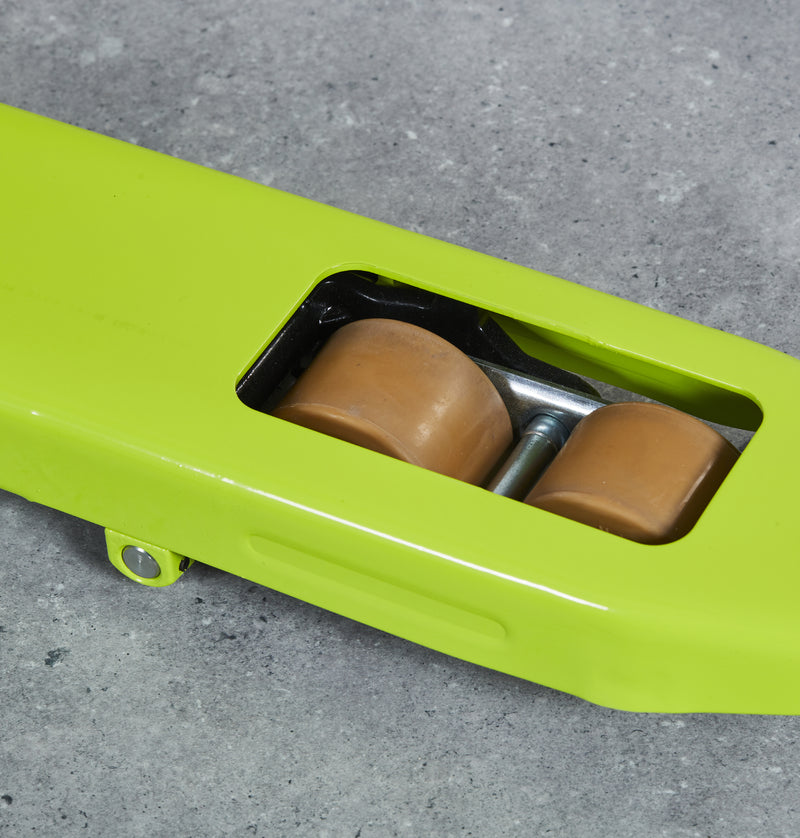

- Nylon Rollers

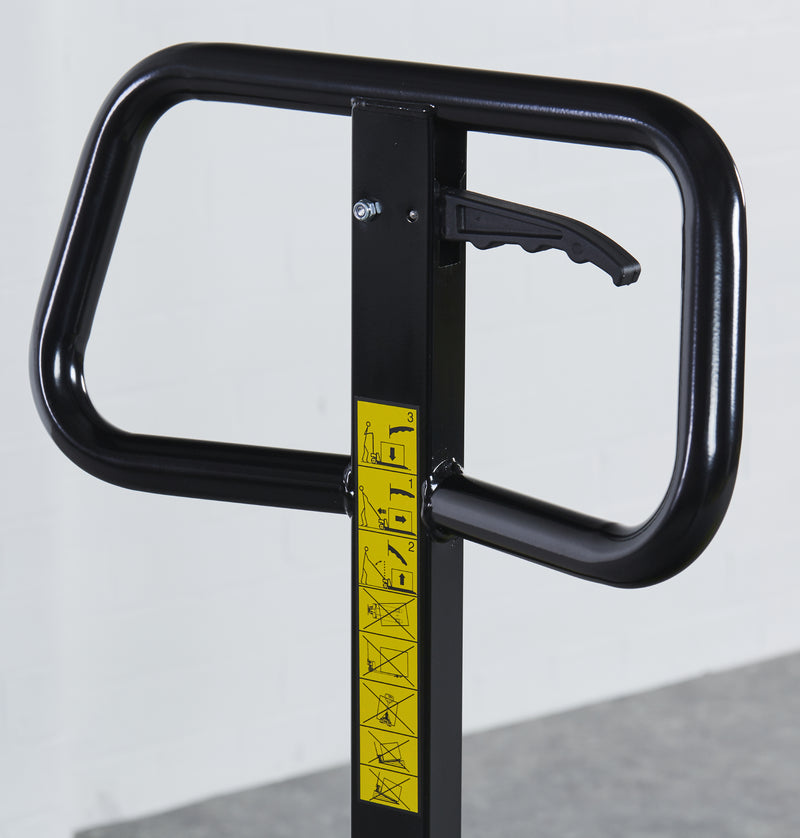

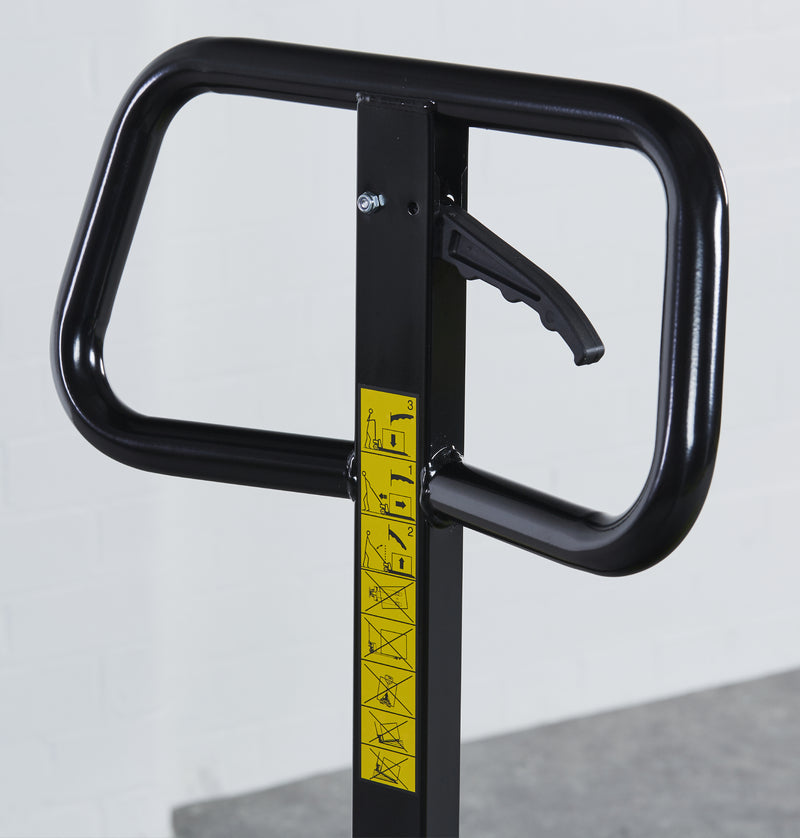

- 2 Curves handle with all the controls (lowering / drive position / lifting) available in a single lever for simple and safe control.
Varnishing:
Following an appropriate conditioning operation the frame varnished with polyester powder at a temperature of 250degrees to guarantee maximum resistance to wear and atmospheric agents.
Specifications:
- Load Capacity: 2500kg
- Load Centre Distance: 600mm
- Load Axle to End Forks: 932mm
- Wheel Base: 1192mm
- DIMENSIONS:
- Lift Height: 115mm
- Height of Tiller in Drive Position Max: 1160mm
- Height, Lowered: 85mm
- Overall Length: 1550mm
- Length to Face of Forks: 400mm
- Overall Width: 525mm

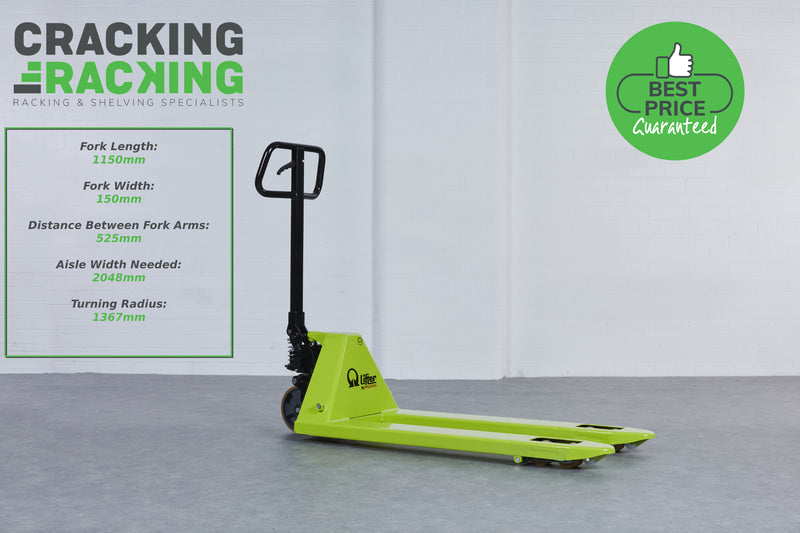

- Fork Dimensions - Thickness: 55mm
- Fork Dimensions - Width: 150mm
- Fork Dimensions - Length: 1150mm
- Distance Between Fork Arms: 525mm
- Ground Distance, Centre of Wheelbase: 30mm
- Aisle Width: 1835mm
- Turning Radius: 7367mm
