Description

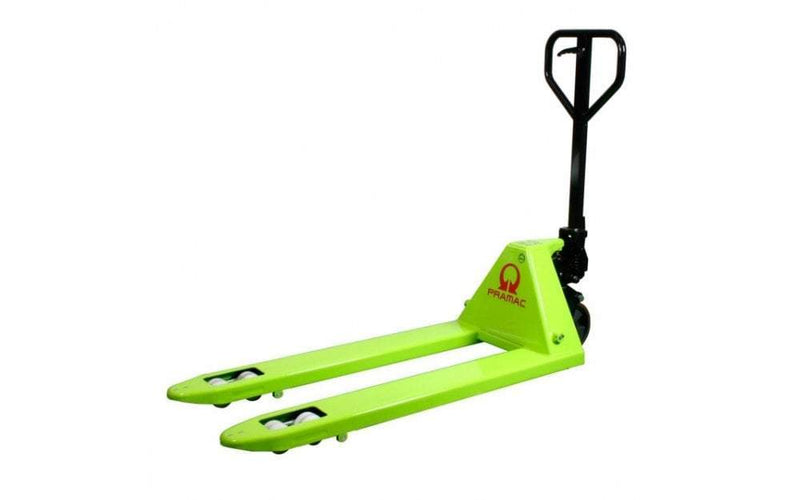

The GS EVO is the top choice for hand pallet truck: designed for an intensive use with maximum easiness of use and superior ergonomics.
Hydraulic Unit:
The GS EVO pump has been designed with extreme care of details in order to have superior characteristics and features such as:
- Monolithic Design: the resistant and reliable one-piece cast iron housing protects all components avoiding any accidental damages. Pump housing is processed with CNC machines to achieve high precision tolerances and high accuracy.
- Chromed Piston Rod and Oil Seal: in order to avoid rust and prevent oil leakage during the use.
- Maximum Pressure Valve: safety device that protects the transpallet against overloads.
- Proportional Lowering Valve: lowering speed can be proportionally controlled according to the lever position on the tiller. Perfect working tool to carry fragile and delicate loads like crystal, glass and ceramics.
Standard Configuration:
- Nylon - Poly 45 steering wheels
- Poly rollers
- Entry/Exit Rollers: supplementary rollers to allow easier entrance and quicker exit from a closed pallet. reducing the impact on the main rollers and guaranteeing a longer life.
- 3D Superior Ergonomic Shape Tiller: this tiller has a special 3D design, with enhanced ergonomics. Compared to a conventional tiller, this shape allows the operator to have a good position when pushing the loads with maximum efficiency without fatigue. This thanks to two large grasping side areas specifically designed to have a correct position during operation of the truck.
Varnishing:
- Following an appropriate conditioning operation the frame is varnished with polyester powder at a temperature of 250 degrees to guarantee maximum resistance to wear and atmospheric agents.
Easy to Mount:
- Tiller easy to assemble with a fast mounting system. Robust tiller connection with two full welded joints that assure superior sturdiness in the toughest application.
Code | Lift Height | Overall Length | Overall Width | Fork Length | Fork Width | Distance Between Fork Arms | Aisle Width | Turning Radius |
GS 25S2-1550 | 115mm | 1550mm | 525mm | 1150mm | 150mm | 525mm | 2048mm | 1367mm |
GS 25S2-1220 | 115mm | 1620mm | 525mm | 1220mm | 150mm | 525mm | 1855mm | 1437mm |
