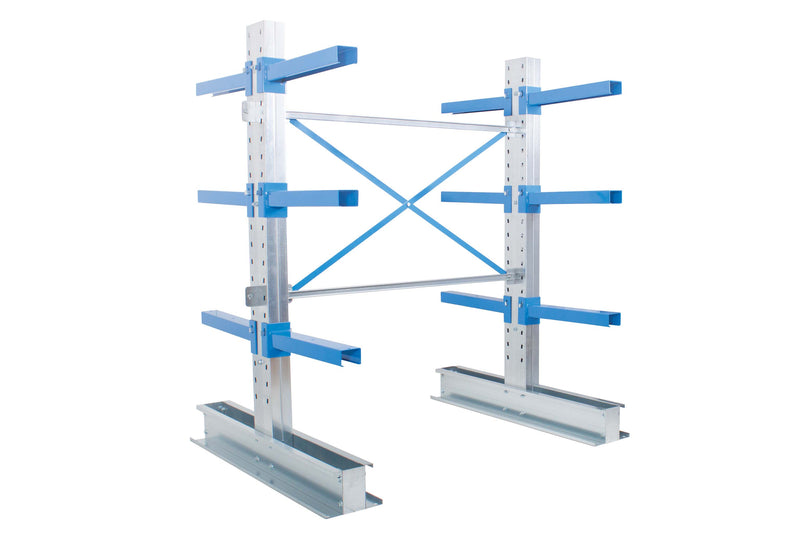

Our Cantilever system is based on modular bays and fittings to provide cost effective storage of long and awkward items.
The frames are available in three heights and three depths in both single and double sided configurations. Each bay comes complete with three arms per frame and you can add or deduct the number of levels required.

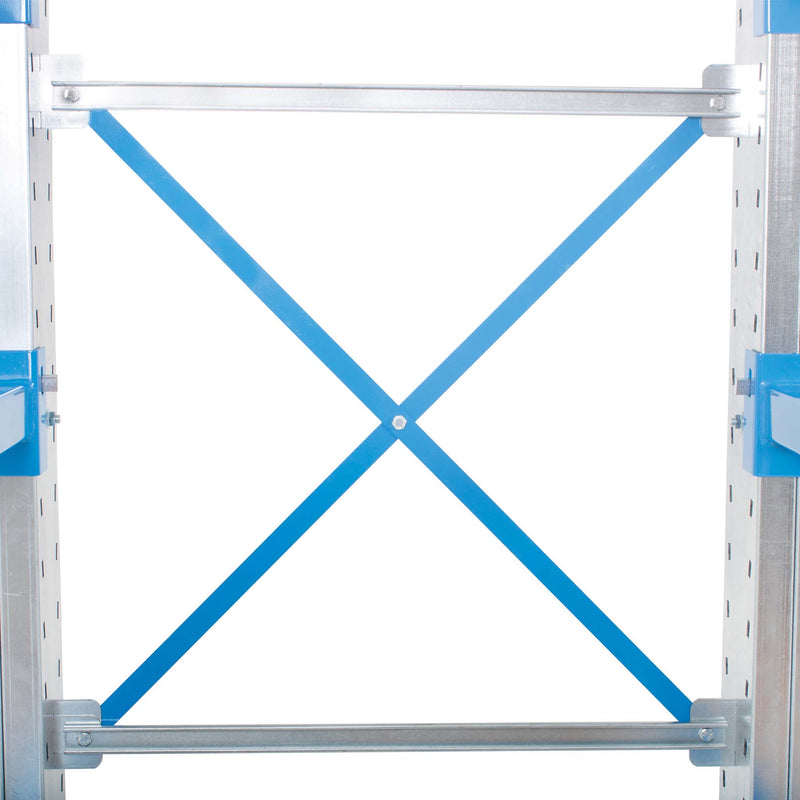

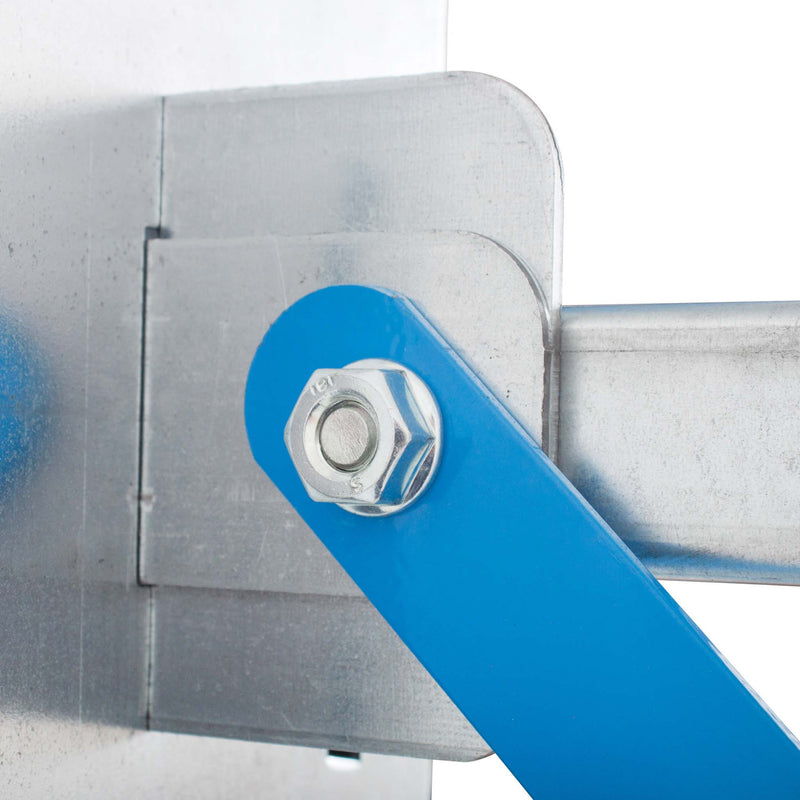

The arms can be fitted with end stops (at an additional cost) to secure any loose products from falling off. The frames are spaced 1000mm and 1500mm apart with bolted on X brace, so you can easily work out your run using the starter and extension bay.
- Incredible value for money
- Easy to build and reconfigure

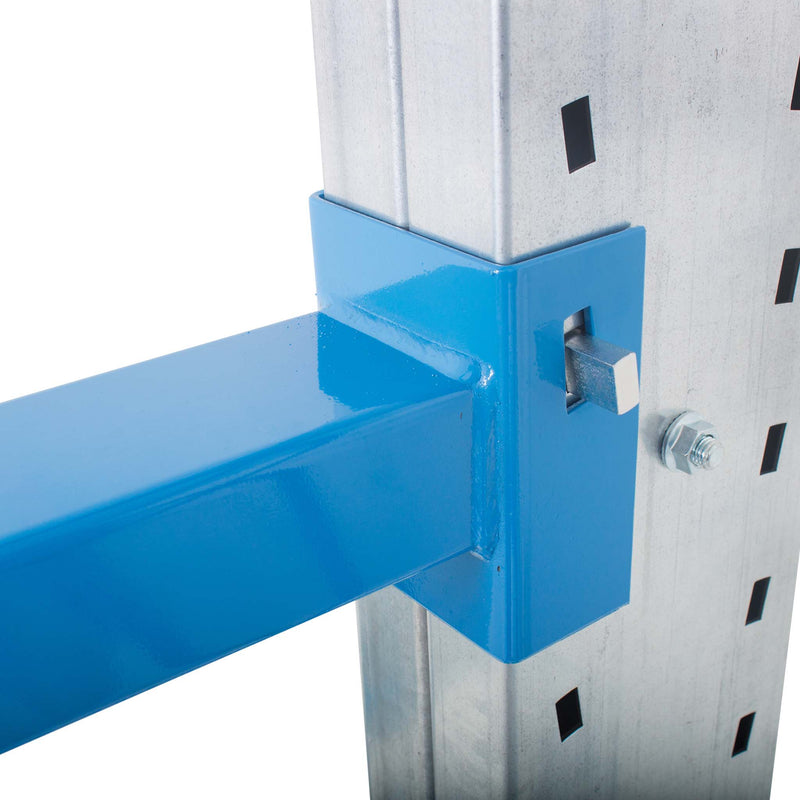

- Arms adjust every 75mm
- Tough epoxy finish

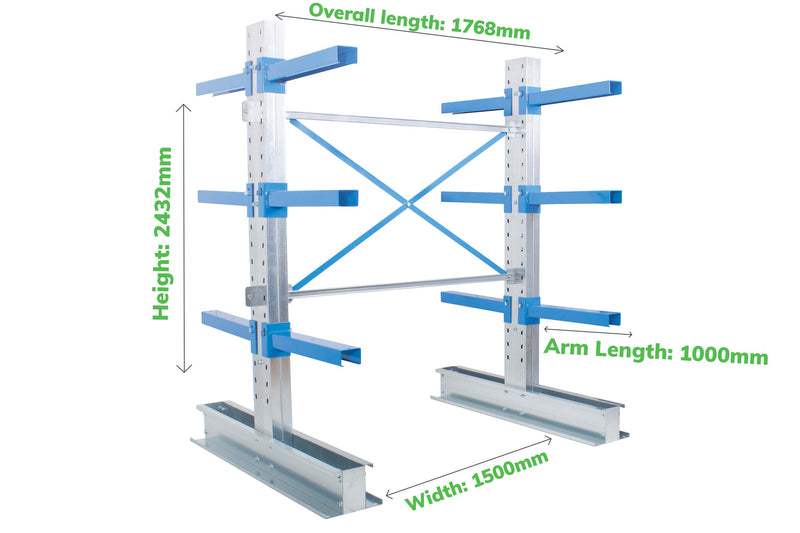

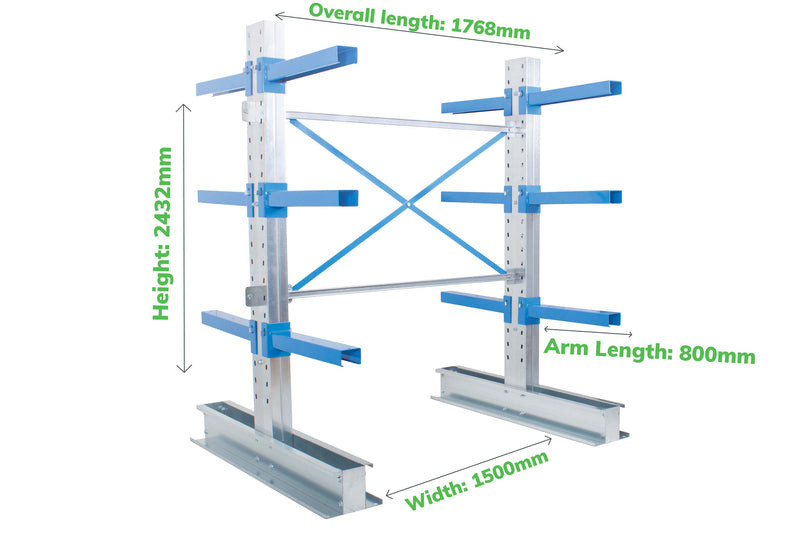

- 1976mm, 2432mm, 2964mm
- 1000, 1500mm
- Base Depths( mm )
- Single Sided: 780, 980, 1180mm
- Double Sided: 1380, 1780, 2180mm
Arm Lengths Available:
- 600mm, 800mm, 1000mm
- Frame: Steel (Galvanised)
- Bracing: Steel (Galvanised) - Blue RAL5015
- Arms: Steel - Blue RAL5015
- Arm Pins: Steel
